Network accessibility

[1]:

import pandas as pd

blocks_gdf = pd.read_pickle('./../../data/saint_petersburg/blocks.pickle')
accessibility_matrix = pd.read_pickle('./../../data/saint_petersburg/accessibility_matrix_intermodal.pickle')

Utils

[2]:

import geopandas as gpd

def plot_accessibility(accessibility_df : pd.DataFrame, method):
    gdf = blocks_gdf[['geometry']].join(accessibility_df)
    column = [c for c in gdf.columns if 'accessibility' in c][0]
    ax = gdf.plot(column=column, legend=True)
    ax.set_axis_off()
    ax.set_title(method.__name__)

Median accessibility

Certified classic

[3]:

from blocksnet.analysis.network import median_accessibility

med_acc_df = median_accessibility(accessibility_matrix)
med_acc_df.head()

/home/vasilstar/masterplanning/.venv/lib/python3.10/site-packages/pandas/io/formats/format.py:1458: RuntimeWarning: overflow encountered in cast
  has_large_values = (abs_vals > 1e6).any()

[3]:

	median_accessibility
0	88.0625
1	88.1875
2	121.0625
3	123.8125
4	109.5625

[4]:

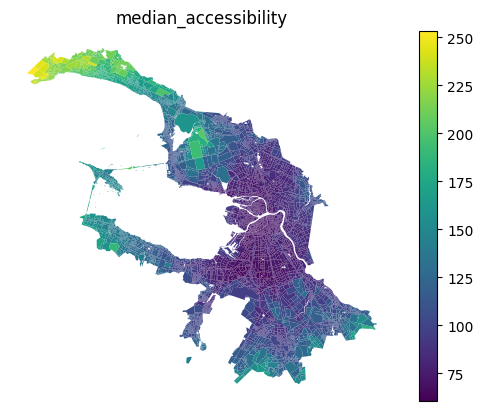

plot_accessibility(med_acc_df, median_accessibility)

../../../_images/examples_analysis_network_accessibility_6_0.png

Max accessibility

[5]:

from blocksnet.analysis.network import max_accessibility

max_acc_df = max_accessibility(accessibility_matrix)
max_acc_df.head()

/home/vasilstar/masterplanning/.venv/lib/python3.10/site-packages/pandas/io/formats/format.py:1458: RuntimeWarning: overflow encountered in cast
  has_large_values = (abs_vals > 1e6).any()

[5]:

	max_accessibility
0	290.00
1	285.50
2	328.50
3	331.25
4	319.75

[6]:

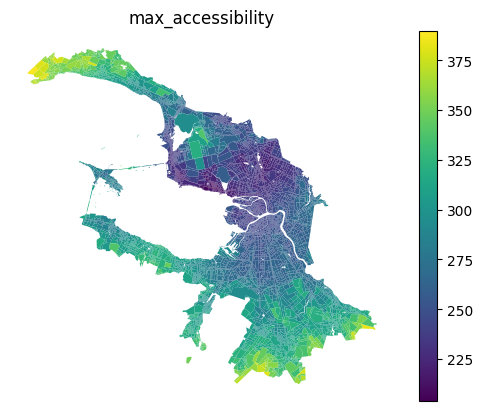

plot_accessibility(max_acc_df, max_accessibility)

../../../_images/examples_analysis_network_accessibility_9_0.png

Area weighted accessibility

[7]:

from blocksnet.analysis.network import area_accessibility

area_acc_df = area_accessibility(accessibility_matrix[[123,124]], blocks_gdf)
area_acc_df.head()

[7]:

	area_accessibility
0	58.846517
1	80.763378
2	59.138607
3	61.845134
4	29.576284

[8]:

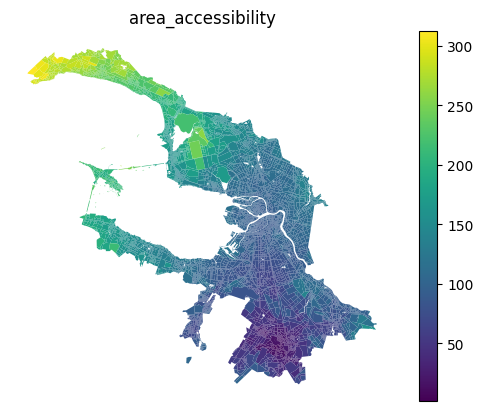

plot_accessibility(area_acc_df, area_accessibility)

../../../_images/examples_analysis_network_accessibility_12_0.png

Mean accessibility

[9]:

from blocksnet.analysis.network import mean_accessibility

mean_acc_df = mean_accessibility(accessibility_matrix)
mean_acc_df.head()

/home/vasilstar/masterplanning/.venv/lib/python3.10/site-packages/pandas/io/formats/format.py:1458: RuntimeWarning: overflow encountered in cast
  has_large_values = (abs_vals > 1e6).any()

[9]:

	mean_accessibility
0	102.875
1	101.875
2	135.875
3	138.500
4	124.000

[10]:

plot_accessibility(mean_acc_df, mean_accessibility)

../../../_images/examples_analysis_network_accessibility_15_0.png

Relative accessibility

[11]:

from blocksnet.analysis.network import relative_accessibility

block_id = 123
rel_acc_df = relative_accessibility(accessibility_matrix, block_id)
rel_acc_df.head()

/home/vasilstar/masterplanning/.venv/lib/python3.10/site-packages/pandas/io/formats/format.py:1458: RuntimeWarning: overflow encountered in cast
  has_large_values = (abs_vals > 1e6).any()

[11]:

	relative_accessibility
0	58.031250
1	79.937500
2	63.593750
3	66.312500
4	24.109375

[12]:

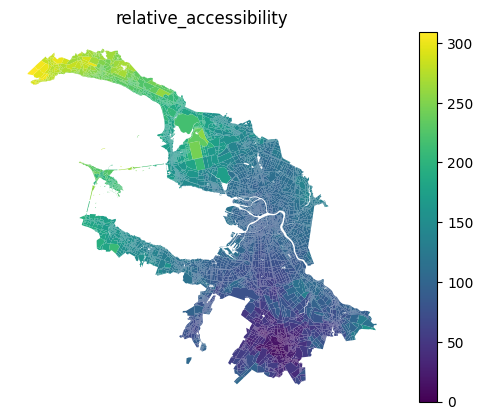

plot_accessibility(rel_acc_df, relative_accessibility)

../../../_images/examples_analysis_network_accessibility_18_0.png

Land use accessibility

[13]:

from blocksnet.enums import LandUse
from blocksnet.analysis.network import land_use_accessibility

lu_acc_df = land_use_accessibility(accessibility_matrix, blocks_gdf, LandUse.BUSINESS, out=True)
lu_acc_df.head()

/home/vasilstar/masterplanning/.venv/lib/python3.10/site-packages/pandas/io/formats/format.py:1458: RuntimeWarning: overflow encountered in cast
  has_large_values = (abs_vals > 1e6).any()

[13]:

	land_use_accessibility
0	73.9375
1	70.9375
2	111.5625
3	114.2500
4	103.0625

[14]:

plot_accessibility(lu_acc_df, land_use_accessibility)

../../../_images/examples_analysis_network_accessibility_21_0.png

Land use accessibility matrix

[15]:

from blocksnet.analysis.network import land_use_accessibility_matrix

lu_acc_mx = land_use_accessibility_matrix(accessibility_matrix, blocks_gdf)
lu_acc_mx

[15]:

	LandUse.RESIDENTIAL	LandUse.BUSINESS	LandUse.RECREATION	LandUse.INDUSTRIAL	LandUse.TRANSPORT	LandUse.SPECIAL	LandUse.AGRICULTURE
LandUse.RESIDENTIAL	93.5625	85.0000	114.750	93.9375	87.5625	115.5000	120.2500
LandUse.BUSINESS	84.8750	65.8125	107.000	82.2500	71.1875	106.0625	113.8750
LandUse.RECREATION	114.6250	106.8125	129.125	119.1250	111.1250	136.0000	149.3750
LandUse.INDUSTRIAL	94.0000	82.3125	119.250	90.0000	83.8750	115.7500	115.7500
LandUse.TRANSPORT	87.5625	70.9375	111.250	83.8750	74.7500	110.5000	114.5625
LandUse.SPECIAL	115.4375	106.7500	135.125	116.0625	110.8750	128.1250	140.6250
LandUse.AGRICULTURE	119.6250	113.1250	149.125	115.0000	113.5000	140.3750	112.7500
