Accessibility relations
How to fetch graph and calculate accessibility_matrix using our IduEdu wrappers.
[37]:
import geopandas as gpd
blocks_gdf = gpd.read_parquet('./../data/blocks.parquet')[['geometry']]
blocks_gdf.head()
[37]:
| geometry | |
|---|---|
| id | |
| 0 | POLYGON ((354918.622 6625258.829, 354901.464 6... |
| 1 | POLYGON ((355412.142 6623378.149, 355411.7 662... |
| 2 | POLYGON ((353934.329 6625429.433, 353923.453 6... |
| 3 | POLYGON ((355099.099 6623847.765, 355074.808 6... |
| 4 | POLYGON ((352766.168 6621954.748, 352744.412 6... |
[38]:

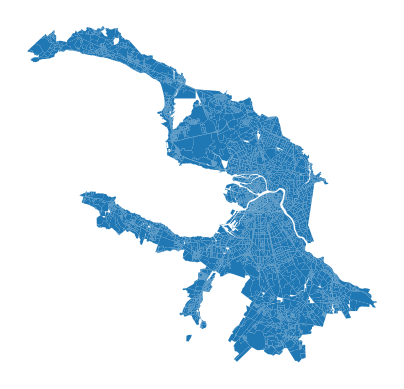

blocks_gdf.plot().set_axis_off()
Intermodal graph
[39]:
from blocksnet.relations.accessibility import get_accessibility_graph
graph = get_accessibility_graph(blocks_gdf, 'intermodal')
2025-03-31 03:35:10.269 | WARNING | blocksnet.relations.accessibility.graph:get_accessibility_graph:14 - CRS do not match IDUEDU required crs. Reprojecting.
2025-03-31 03:35:12.532 | INFO | iduedu.modules.drive_walk_builder:get_walk_graph:216 - Downloading walk graph from OSM, it may take a while for large territory ...
/home/vasilstar/masterplanning/.venv/lib/python3.10/site-packages/shapely/linear.py:88: RuntimeWarning: invalid value encountered in line_locate_point
return lib.line_locate_point(line, other)
2025-03-31 03:42:34.145 | INFO | iduedu.modules.pt_walk_joiner:join_pt_walk_graph:50 - Composing intermodal graph...
2025-03-31 03:43:42.413 | WARNING | iduedu.modules.pt_walk_joiner:join_pt_walk_graph:179 - Weakly connected components detected. 2 graph islands were removed. These are probably pt routes that are not connected to walking routes. You may try adjusting the max_dist parameter, but this can lead to incorrect data.
Accessibility matrix
[40]:
from blocksnet.relations.accessibility import calculate_accessibility_matrix
acc_mx = calculate_accessibility_matrix(blocks_gdf, graph)
[41]:
acc_mx.head()
/home/vasilstar/masterplanning/.venv/lib/python3.10/site-packages/pandas/io/formats/format.py:1458: RuntimeWarning: overflow encountered in cast
has_large_values = (abs_vals > 1e6).any()
[41]:
| id | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ... | 16310 | 16311 | 16312 | 16313 | 16314 | 16315 | 16316 | 16317 | 16318 | 16319 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| id | |||||||||||||||||||||
| 0 | 0.000000 | 18.953125 | 10.507812 | 16.937500 | 30.359375 | 29.281250 | 31.625000 | 23.609375 | 80.8750 | 84.5625 | ... | 79.6250 | 103.9375 | 99.2500 | 136.2500 | 131.875 | 132.6250 | 245.250 | 230.750 | 241.375 | 124.8125 |
| 1 | 18.234375 | 0.000000 | 19.000000 | 8.156250 | 20.406250 | 24.968750 | 26.328125 | 16.171875 | 79.3750 | 83.0625 | ... | 78.1250 | 102.5000 | 97.6875 | 134.8750 | 130.375 | 131.0000 | 243.875 | 229.250 | 239.875 | 112.8750 |
| 2 | 10.507812 | 20.875000 | 0.000000 | 20.421875 | 27.781250 | 26.703125 | 29.046875 | 21.031250 | 71.8125 | 75.5000 | ... | 70.5625 | 94.9375 | 90.1250 | 127.1875 | 122.875 | 123.5625 | 236.250 | 221.625 | 232.250 | 124.6875 |
| 3 | 16.562500 | 8.445312 | 18.984375 | 0.000000 | 21.781250 | 27.515625 | 29.296875 | 17.562500 | 79.3750 | 83.0000 | ... | 78.1250 | 102.4375 | 97.6875 | 134.7500 | 130.375 | 131.1250 | 243.875 | 229.250 | 239.875 | 114.3125 |
| 4 | 31.968750 | 19.890625 | 31.421875 | 21.468750 | 0.000000 | 23.828125 | 23.812500 | 15.945312 | 91.8125 | 95.4375 | ... | 90.5625 | 114.8750 | 110.1250 | 147.1250 | 142.875 | 143.5000 | 256.250 | 241.750 | 252.375 | 109.3125 |
5 rows × 16320 columns
