Regression

[1]:

import geopandas as gpd

blocks_gdf = gpd.read_parquet('./blocks.parquet')

Fix columns almost equal 1

[2]:

from blocksnet.enums import LandUse

land_use_columns = [lu.value for lu in LandUse]
blocks_gdf[land_use_columns] = blocks_gdf[land_use_columns].clip(upper=1)

Filter only viable rows

[3]:

blocks_gdf = blocks_gdf[(blocks_gdf[['fsi', 'gsi']] > 0).all(axis=1)]
blocks_gdf = blocks_gdf[(blocks_gdf[['gsi', 'mxi']] <= 1).all(axis=1)]

Initialize graph

[4]:

from blocksnet.relations import generate_adjacency_graph

adjacency_graph = generate_adjacency_graph(blocks_gdf, 10)

2025-04-15 16:22:17.177 | INFO     | blocksnet.relations.adjacency.core:_generate_adjacency_nodes:10 - Generating nodes
2025-04-15 16:22:17.182 | INFO     | blocksnet.relations.adjacency.core:_generate_adjacency_edges:15 - Generating edges
2025-04-15 16:22:19.058 | SUCCESS  | blocksnet.relations.adjacency.core:generate_adjacency_graph:38 - Adjacency graph successfully generated: 5350 nodes, 15279 edges

Density

[5]:

from blocksnet.machine_learning.regression import DensityRegressor

dr = DensityRegressor()

Train

[33]:

data = dr.get_train_data(blocks_gdf, adjacency_graph, fit_scaler=True, test=0.2)

2025-04-15 15:49:33.992 | INFO     | blocksnet.preprocessing.feature_engineering.core:_calculate_usual_features:34 - Calculating usual features
2025-04-15 15:49:34.107 | INFO     | blocksnet.machine_learning.regression.density.core:_features_from_geometries:46 - Fitting the scaler

[34]:

train_losses, test_losses = dr.train(data, epochs=250, learning_rate=3e-4, weight_decay=0, delta=0.5)

Train loss: 0.02410 | Test loss: 0.03729: 100%|██████████| 250/250 [00:22<00:00, 11.00it/s]

[37]:

import pandas as pd

pd.DataFrame.from_dict({
  'train': train_losses,
  'test': test_losses,
}).plot()

[37]:

<Axes: >

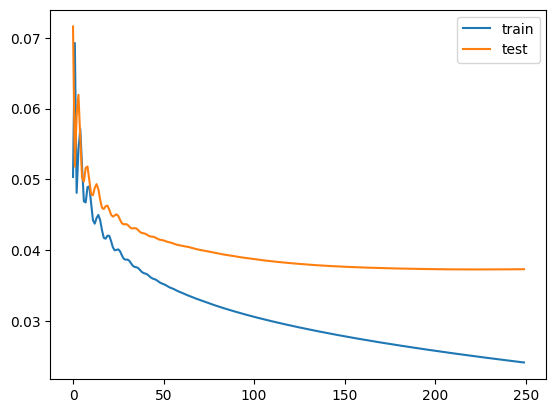

../../_images/examples_machine_learning_regression_13_1.png

Test

[38]:

dr.test(data, delta=0.5)

[38]:

0.03729007765650749

Evaluate

[6]:

result_df = dr.evaluate(blocks_gdf, adjacency_graph)

2025-04-15 16:22:29.517 | INFO     | blocksnet.preprocessing.feature_engineering.core:_calculate_usual_features:34 - Calculating usual features

[7]:

df = result_df.copy()
for column in df.columns:
  df[column] -= blocks_gdf[column]
  ax = blocks_gdf[['geometry']].join(df).plot(column, cmap='PuOr', legend=True, vmin=-0.5, vmax=0.5)
  ax.set_title(column)
  ax.set_axis_off()

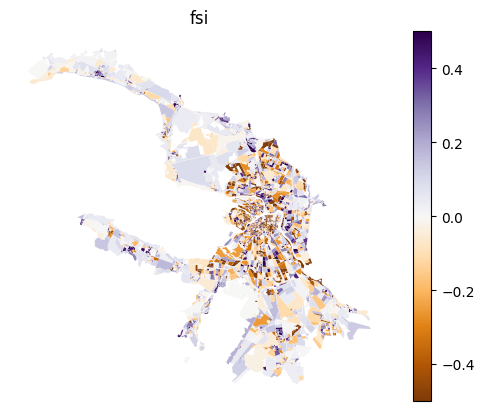

../../_images/examples_machine_learning_regression_18_0.png

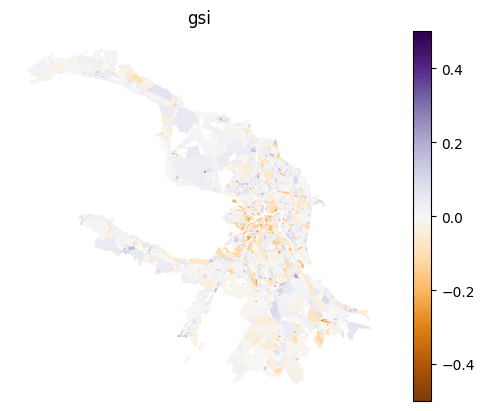

../../_images/examples_machine_learning_regression_18_1.png

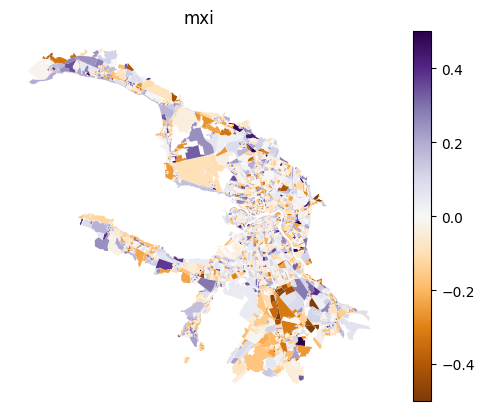

../../_images/examples_machine_learning_regression_18_2.png

[30]:

import pandas as pd

df = result_df.copy()

group_columns = ['residential', 'business', 'recreation', 'industrial', 'transport', 'special', 'agriculture']
diff_columns = df.columns
group_abs_diff_means = {}

for group_col in group_columns:
    group_mask = blocks_gdf[group_col] > 0
    filtered_blocks = blocks_gdf.loc[group_mask, diff_columns]
    filtered_df = df.loc[group_mask, diff_columns]

    # Абсолютное отклонение
    abs_diff = (filtered_df - filtered_blocks).abs()
    group_abs_diff_means[group_col] = abs_diff.mean()

# В виде DataFrame
abs_mean_diffs_df = pd.DataFrame(group_abs_diff_means).T
abs_mean_diffs_df.index.name = 'Group'

[35]:

# Копируем исходную таблицу, чтобы не потерять оригинал
normalized_df = abs_mean_diffs_df.copy()

# Применяем min-max нормализацию по каждому столбцу (признаку)
normalized_df = (normalized_df - normalized_df.min()) / (normalized_df.max() - normalized_df.min())

[37]:

import seaborn as sns
import matplotlib.pyplot as plt

plt.figure(figsize=(10, 6))
sns.heatmap(abs_mean_diffs_df, annot=True, cmap="RdYlGn_r", center=0, fmt=".3f")
plt.title("Нормализованное Средние отклонения признаков по группам (где значение > 0)", fontsize=14)
plt.xlabel("Признаки", fontsize=12)
plt.ylabel("Группы", fontsize=12)
plt.xticks(rotation=45)
plt.yticks(rotation=0)
plt.tight_layout()
plt.show()

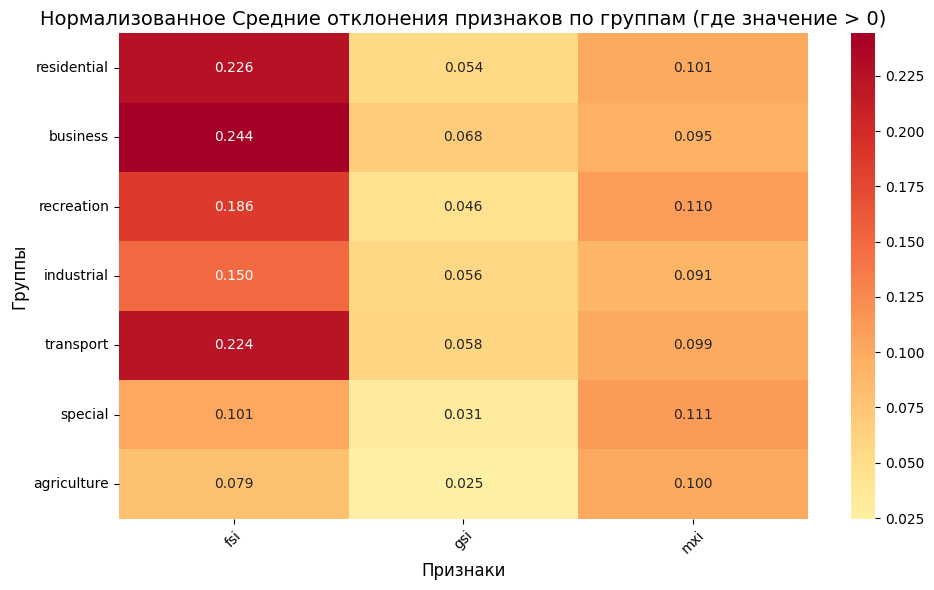

../../_images/examples_machine_learning_regression_21_0.png

Save model and scaler

[8]:

dr.save_model('model.pt')
dr.save_scaler('scaler.pkl')
