[1]:

import geopandas as gpd

blocks_gdf = gpd.read_parquet('./../data/blocks.parquet')[['geometry']]
blocks_gdf.head()

[1]:

	geometry
id
0	POLYGON ((354918.622 6625258.829, 354901.464 6...
1	POLYGON ((355412.142 6623378.149, 355411.700 6...
2	POLYGON ((353934.329 6625429.433, 353923.453 6...
3	POLYGON ((355099.099 6623847.765, 355074.808 6...
4	POLYGON ((352766.168 6621954.748, 352744.412 6...

Buildings aggregation

[2]:

buildings_gdf = gpd.read_parquet('./../data/buildings.parquet')[['geometry', 'build_floor_area', 'footprint_area']]
buildings_gdf.head()

[2]:

	geometry	build_floor_area	footprint_area
id
158414	POLYGON ((354964.060 6625185.771, 354959.684 6...	15.035234	15.030958
150194	POLYGON ((355008.167 6625301.606, 355012.344 6...	22.191954	22.185639
58769	POLYGON ((354878.941 6625544.327, 354882.984 6...	31.272943	31.264070
158321	POLYGON ((355037.286 6624978.295, 355060.347 6...	158.369888	158.324760
36319	POLYGON ((354643.688 6625735.942, 354657.286 6...	192.764221	192.709820

[3]:

from blocksnet.blocks.aggregation import aggregate_objects

blocks_gdf, objects_gdf = aggregate_objects(blocks_gdf, buildings_gdf)

2025-03-26 16:34:06.826 | INFO     | blocksnet.blocks.aggregation.core:_preprocess_input:11 - Preprocessing input
2025-03-26 16:34:08.024 | INFO     | blocksnet.blocks.aggregation.core:aggregate_objects:38 - Aggregating objects

[4]:

blocks_gdf.head()

[4]:

	geometry	build_floor_area	footprint_area	objects_count
id
0	POLYGON ((354918.622 6625258.829, 354901.464 6...	43840.686518	13953.390266	13.0
1	POLYGON ((355412.142 6623378.149, 355411.700 6...	10294.395525	5051.410558	17.0
2	POLYGON ((353934.329 6625429.433, 353923.453 6...	1173.871643	1163.480697	5.0
3	POLYGON ((355099.099 6623847.765, 355074.808 6...	46303.954706	11085.135352	19.0
4	POLYGON ((352766.168 6621954.748, 352744.412 6...	153749.574111	45222.959595	83.0

[6]:

objects_gdf.head()

[6]:

	geometry	build_floor_area	footprint_area	objects_count
id
799	POINT (359976.856 6653615.717)	48.900291	48.884676	1
149177	POINT EMPTY	36.114338	0.000000	1
117246	POINT (343574.869 6659119.948)	65.547600	65.534469	1
124423	POINT (342995.754 6653420.954)	20.652546	20.648502	1
113602	POINT (319549.989 6646766.805)	147.496292	147.496007	1

[7]:

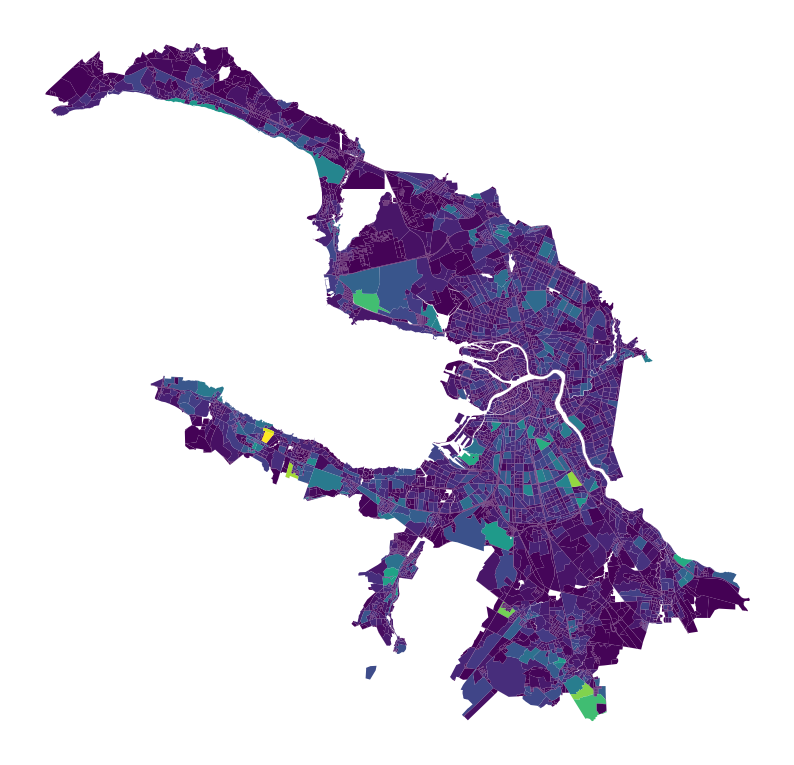

blocks_gdf.plot('objects_count', figsize=(10,10)).set_axis_off()

../../_images/examples_blocks_aggregation_6_0.png

[8]:

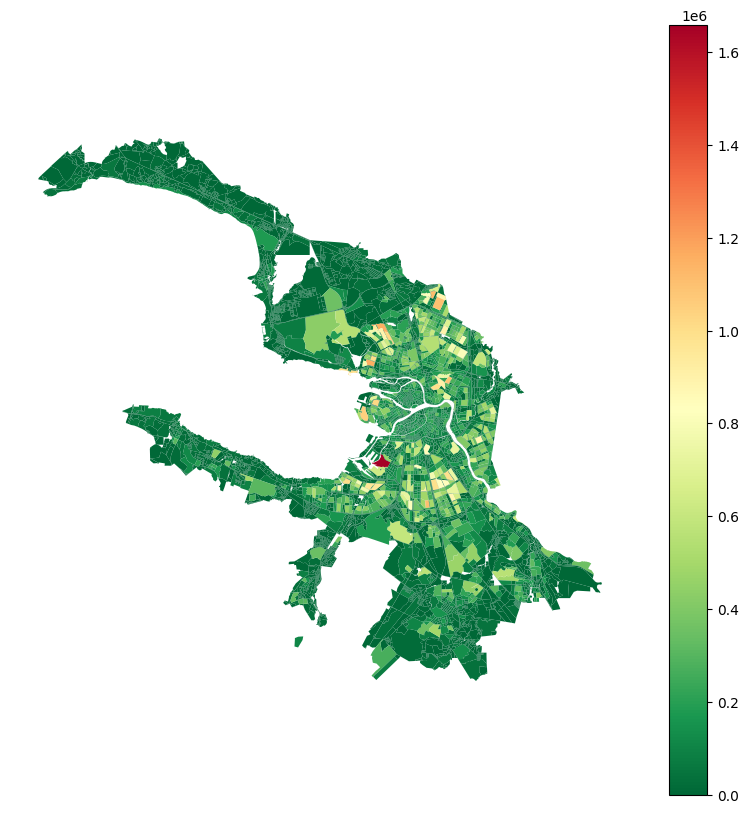

blocks_gdf.plot(column='build_floor_area', legend=True, figsize=(10, 10), cmap='RdYlGn_r').set_axis_off()

../../_images/examples_blocks_aggregation_7_0.png

Services aggregation

[9]:

services_gdf = gpd.read_parquet('./../data/services.parquet')[['geometry', 'capacity', 'service_type']]
services_gdf = services_gdf[services_gdf['service_type'] == 'school']
services_gdf.head()

[9]:

	geometry	capacity	service_type
89	POINT (344901.025 6636842.991)	105	school
123	POINT (344572.765 6637377.808)	544	school
421	POINT (343490.888 6636544.706)	482	school
613	POINT (337815.236 6630648.737)	75	school
650	POINT (355309.295 6618733.164)	942	school

[10]:

blocks_gdf, objects_gdf = aggregate_objects(blocks_gdf, services_gdf)

2025-03-26 16:34:53.109 | INFO     | blocksnet.blocks.aggregation.core:_preprocess_input:11 - Preprocessing input
2025-03-26 16:34:53.116 | INFO     | blocksnet.blocks.aggregation.core:aggregate_objects:38 - Aggregating objects

[11]:

blocks_gdf.head()

[11]:

	geometry	capacity	objects_count
id
0	POLYGON ((354918.622 6625258.829, 354901.464 6...	0.0	0.0
1	POLYGON ((355412.142 6623378.149, 355411.700 6...	0.0	0.0
2	POLYGON ((353934.329 6625429.433, 353923.453 6...	0.0	0.0
3	POLYGON ((355099.099 6623847.765, 355074.808 6...	0.0	0.0
4	POLYGON ((352766.168 6621954.748, 352744.412 6...	0.0	0.0

[13]:

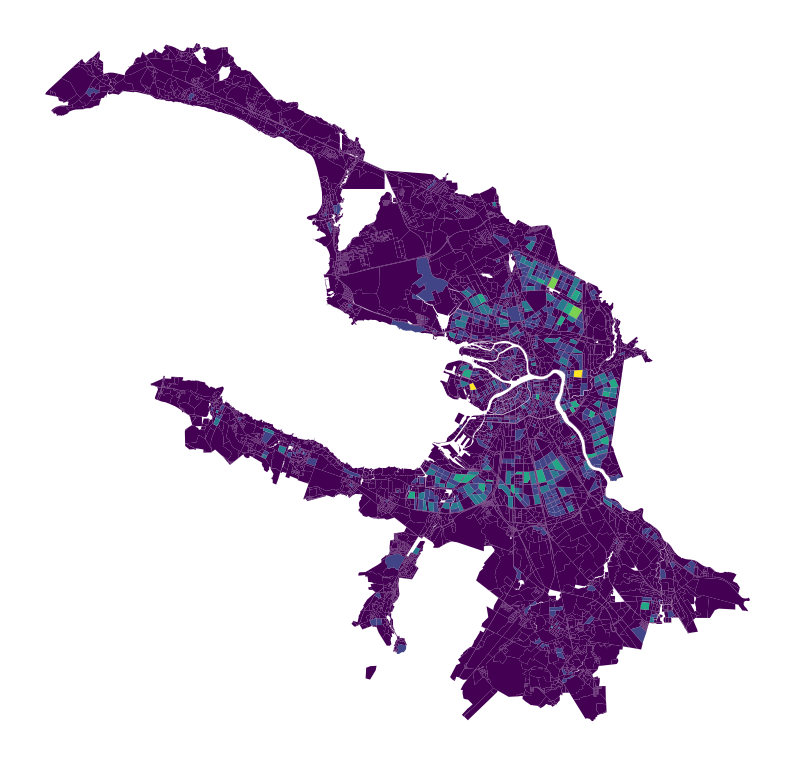

blocks_gdf.plot(column='objects_count', figsize=(10, 10)).set_axis_off()

../../_images/examples_blocks_aggregation_12_0.png

[14]:

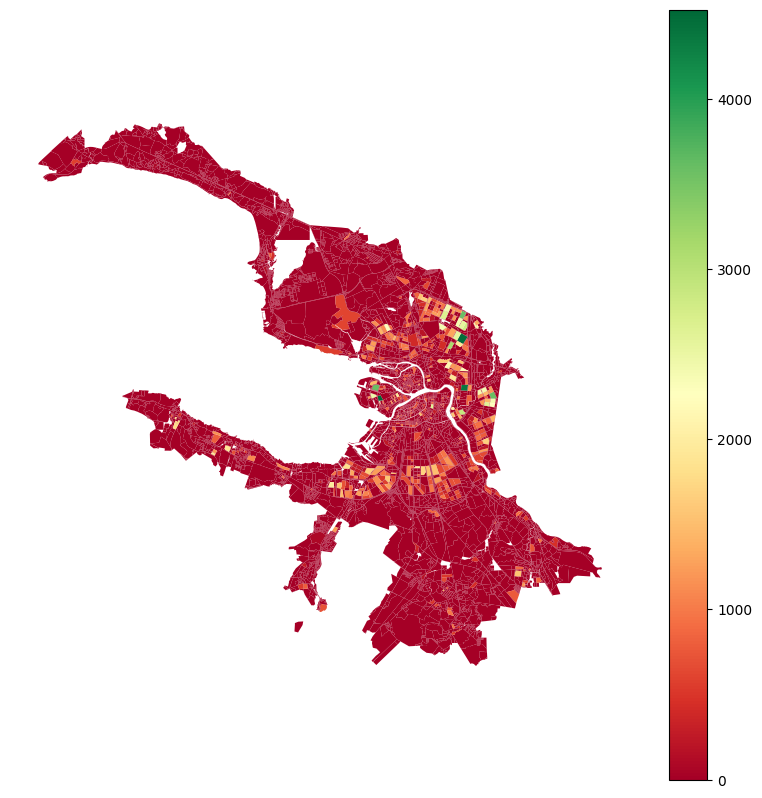

blocks_gdf.plot(column='capacity', legend=True, figsize=(10, 10), cmap='RdYlGn').set_axis_off()

../../_images/examples_blocks_aggregation_13_0.png
